Single Port RJ45 Modular Jack Plastic Material Operating Life 750 Cycles MIN

Name: Single Port RJ45 Modular Jack Plastic Material Operating Life 750 Cycles MIN
Brand: CSCE
Price: 1 USD

Buy cheap Single Port RJ45 Modular Jack Plastic Material Operating Life 750 Cycles MIN product

Brand Name : CSCE

Model Number : 56A-21881011X01

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : Shenzhen,China

MOQ : 500pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 150K pcs/day

Delivery Time : 7-10 days

Packaging Details : Tray in Carton

Type : RJ45

Material : plastic

Product name : RJ45 Modular Jack

Color : BLACK

Pin : 8pin

Rated voltage : 125V

Contact Now

RJ45 Single Port shielded 8P8C 1×1Port RJ45 Modular Jack Connector With LED

Quick Details:

Specification:	RJ45 modular jack	Cross Part NO:	56A-21881011X01
Mounting:	Thru-hole R/A	Samples:	Available 2-3 Pcs

Product Description:

Retention Strength	7.7KG.F MIN Between Jack And Plug
Storage Temperature	﹣40℃ to +85℃
Insulation Resistance	500 MΩ MIN @ 500V DC.
Housing Material	PBT/PA66/PA46
Contact Resistance	30milliohm Max
Mating/Unmating Force	2.2KG.F MAX.
Operation Temperature	﹣40℃ to +85℃
Operating Life	750 Cycles MIN.
Contact Material	DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
Current Rating	1.5A
Voltage Rating	125v
Insert Material	UL94V-0
Withstand Voltage	1000V AC 50Hz or 60Hz,1MIN.

Competitive Advantage

14 years production experience,

3000 staff,

100% test

Flexible delivery time

In-sale service:

1. We do double check before the products sent out

2. We do choose the safe shipping

3. We do make sure you can get the products on time

After service:

1. We do follow up after you get the products

2. We will answer customer questions in time. If need, we can provide free guidance if customer need new rqquirements.

3. If we have new products, we can recommend you in advance, when you place the second order, we will happy to give you a discount.

Competitive Advantage

14 years production experience,

3000 staff,

100% test

Flexible delivery time

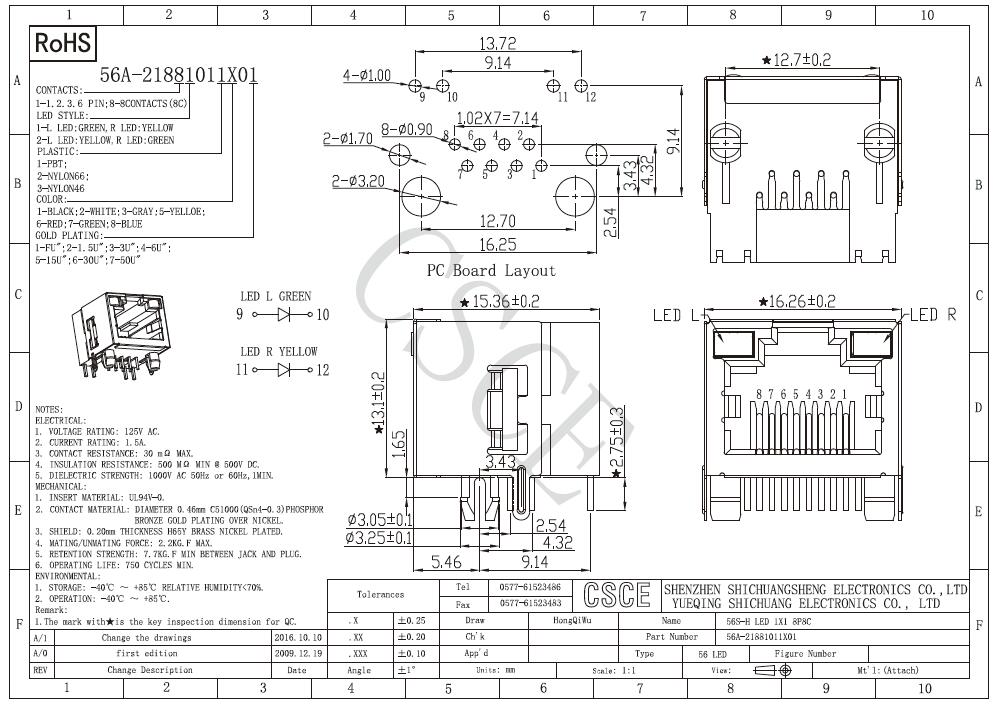

Product Drawing:
