2 X 2 Port 8P8C RJ45 Modular Jack 8 Pin Ethernet Connector LCP Housing Material

Product Categories
SHENZHEN CSCE ELECTRONIC CO.,LTD
Contact Now

2 X 2 Port 8P8C RJ45 Modular Jack 8 Pin Ethernet Connector LCP Housing Material

  • 1
  • 2

Brand Name : CSCE

Model Number : 59B-32881121X01S

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : Shenzhen ， China

MOQ : 500pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, , Western Union, MoneyGram

Supply Ability : 150K pcs/day

Delivery Time : 7-10 days

Packaging Details : Tray in Carton

Gender : Female

Type : RJ45

Application : PCB

Voltage rating : 125vac

Keywords : RJ45 Modular Jack

Operating temperature : -40℃ to +85℃

Contact Now

2 X 2 Port 8P8C RJ45 Modular Jack 8 Pin Ethernet Connector LCP Housing Material





Product Specification:



Specification: RJ45 Modular Jack Cross Part NO: 59B-32881121X01S
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab down Files: PDF/3D/ISG/Stp/Step/Datasheet







Product Details:



1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11.  Housing Material LCP
12. Contact Material Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"







Competitive Advantage
14years production experience,
300staff,
100% test
Flexible delivery time





FAQ

1.  How can i get a sample?

A: just check with our sales.



2. How to develop a new product base on an idea?

A: Tell us what you want, Then we will design it for free.



3. How about OED,ODM?

A: 13years experiences in OEM,ODM.



4. How to reduce your risk?

A: Check the sample before order.



5. How about the after-sale service?

A: Just tell us the problem after you receive the products.

Then we’ll help you deal with it together.

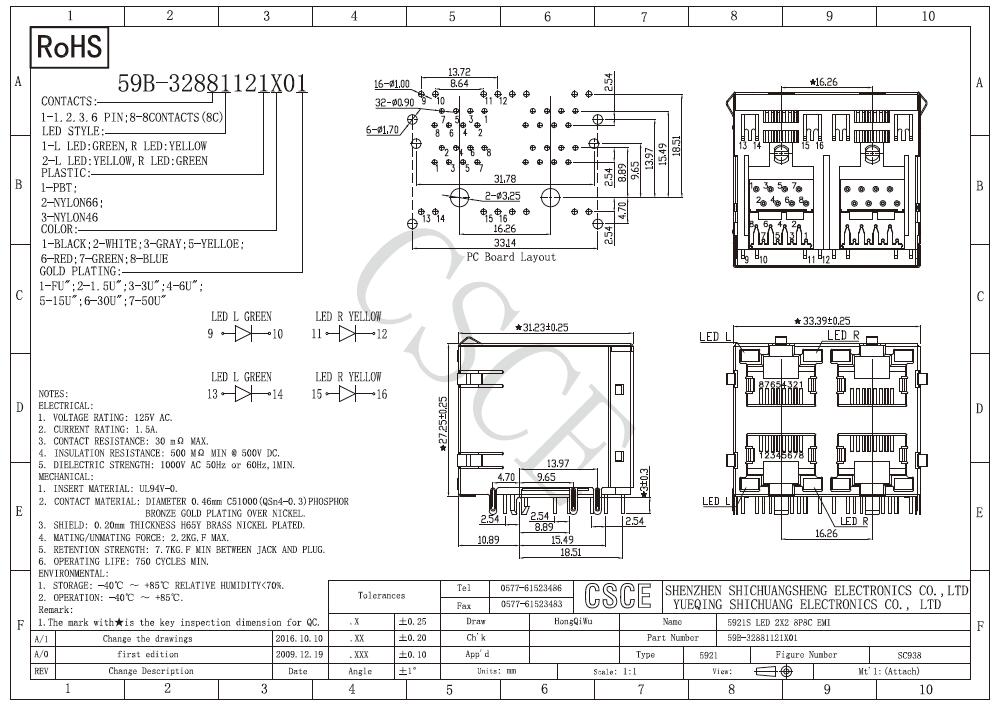

Porduct drawing



2 X 2 Port 8P8C RJ45 Modular Jack 8 Pin Ethernet Connector LCP Housing Material
