2 Port Plug USB Male Female Connector 180 Degree USB 3.0 AF Type Blue Color

Name: 2 Port Plug USB Male Female Connector 180 Degree USB 30 AF Type Blue Color
Brand: CSCE
Price: 1 USD

Buy cheap 2 Port Plug USB Male Female Connector 180 Degree USB 3.0 AF Type Blue Color product

Brand Name : CSCE

Model Number : SUSB-1U1X42-013

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : Shenzhen,China

MOQ : 500pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 150K pcs/day

Delivery Time : 7-10 days

Packaging Details : Tray in Carton

Type : USB

Product name : USB connctor

Material : UL94-V0

Operating temperature : -55°C ~ +85°C

Color : Blue or Custom

Plating : Gold Plating

Contact Now

USB 3.0 AF Type USB 2Port Connector Plug 180 degree USB Connectors

Quick Details:

Specification:	USB Connector	Cross Part NO:	SUSB-1U1X42-013
Shell:	Copper Alloy	Samples:	Available 2-3 Pcs

Product Specification:

Dielectric Withstanding Voltage	AC 100V (RMS)
Colar	Blue
Insulation Resistance	100Megohms Minimum
Contact Resistance	30mΩ Max For pin1&pin4
Contact Current Roting	1.8 Amperes For pin1&pin4
Moling Force	35 Newtorns,Minimum
Material Contact	Copper Alloy
Material Shell	Brass
Plating Shell	Nickel Plated
Material Housing	PBT+30%GF;UL94V-0
Operating Temperature	-55℃ To +85℃

Pre-sale service:

1. We try to do best communicate with every customer about all the questions and promptly

2. We provide pre-sale service in various forms, such as we can provide options for customer choose. So that customers can a reasonable plan with less cost.

In-sale service:

1. We do double check before the products sent out

2. We do choose the safe shipping

3. We do make sure you can get the products on time

After service:

1. We do follow up after you get the products

2. We will answer customer questions in time. If need, we can provide free guidance if customer need new rqquirements.

3. If we have new products, we can recommend you in advance, when you place the second order, we will happy to give you a discount.

Main Customers

Hisense	Skyworth	FOXCONN	JEZETEK	TCL	NEC
TENDA	HUMAX	PANASONIC	HUAWEI	CIG	TwoWing

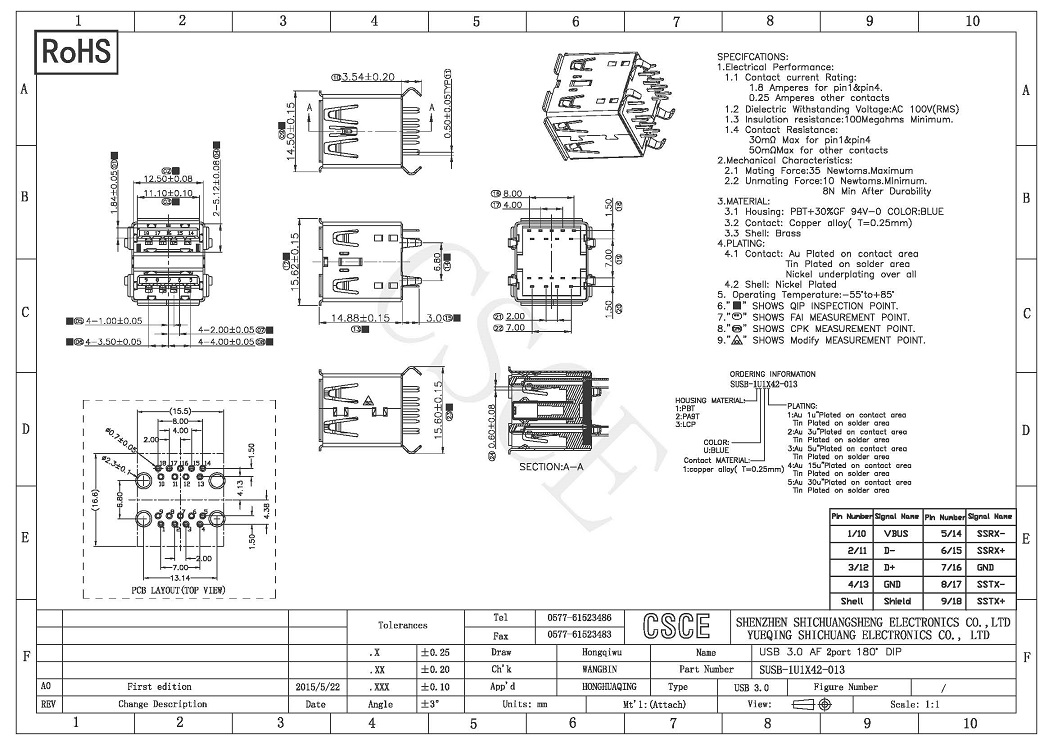

Product Drawing:
