| Unshielded 100 Base T RJ45 Modular Jack Yellow Color Housing Materia PBT / PA66 / PA46 |
Main Customers
| Hisense | Skyworth | FOXCONN | JEZETEK | TCL | NEC |
| TENDA | HUMAX | PANASONIC | HUAWEI | CIG | TwoWing |
Product Description:
| Retention Strength | 7.7KG.F MIN Between Jack And Plug |
| Storage Temperature | ﹣40℃ to +85℃ |
| Insulation Resistance | 500 MΩ MIN @ 500V DC. |
| Housing Material | PBT/PA66/PA46 |
| Contact Resistance | 30milliohm Max |
| Mating/Unmating Force | 2.2KG.F MAX. |
| Operation Temperature | ﹣40℃ to +85℃ |
| Operating Life | 750 Cycles MIN. |
| Contact Material | DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze |
| Current Rating | 1.5A |
| Voltage Rating | 125v |
| Insert Material | UL94V-0 |
| Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
Quick Details:
| Specification: | RJ45 Modular Jack | Cross Part NO: | 56F-118800111X01S |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
FAQ
Q: Can I get some samples?
A: Yes, sample order is available, some samples are free. and it will be freight collect payment.
Q : How long is your lead time?
A: Normally, our lead time is 5-7 days according to different products.
Q: What's your payment term?
A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Q: Why choose our company?
A: 1. Professional manufacturer since 2005, provide various kinds of connectors and LAN Transformer
2. Good quality, competitive price with best service.
3. Available for ODM/OEM order.

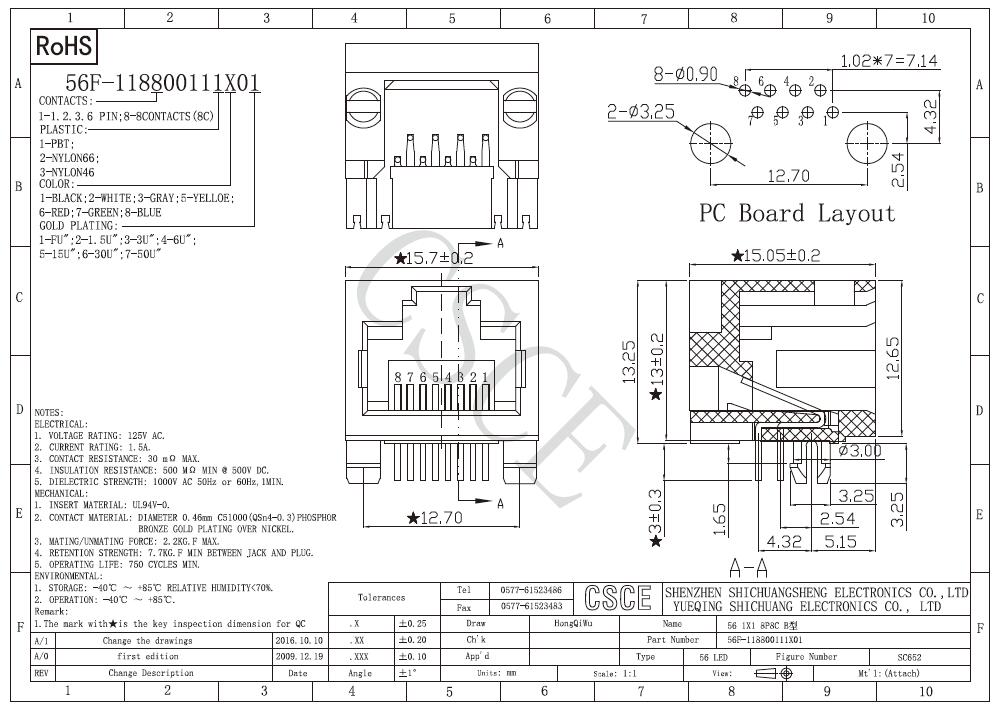

Product Drawing:
Why choose us
- Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
- Specializes in the development , design , production and sale of communication network connectors .
-
Reasonable prices, very competitive and reliable.
-
Excellent sales team and tech team ready to serve you.
-
Fast delivery.
-
OEM services with agreed quantity by both parties.
-
We hope to make long term business cooperation with all our customers.
Product Tags:
|
|
Unshielded 100 Base T RJ45 Modular Jack Yellow Color Housing Materia PBT / PA66 / PA46 Images
|
