Tab Up 1*3 RJ45 Network Jack , 8P8C Network Connector RJ45 Voltage Rating 125v

Name: Tab Up 13 RJ45 Network Jack 8P8C Network Connector RJ45 Voltage Rating 125v
Brand: CSCE
Price: 1 USD

Brand Name : CSCE

Model Number : 56I-138810111X01

Certification : ROHS,ISO9001,ISO 9001,CE

Place of Origin : Shenzhen ， China

MOQ : 500pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, , Western Union, MoneyGram

Supply Ability : 150K pcs/day

Delivery Time : 7-10 days

Packaging Details : Tray in Carton

Type : RJ45

Material : PBT

Pin : 8P8C

Operating temperature : -40℃ to 85℃

Product name : modular rj45 jack

Contact Now

Tab-up With Leds 1*3 Modular Jack RJ45 Connector 8Pin 8Contact Network

Connectors RJ45

Product Specification:

Specification:	Modular Jack RJ45	Cross Part NO:	56I-138810111X01
Mounting:	Thru-hole R/A	Samples:	Available 2-3 Pcs
Latch:	Tab up	Files:	PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating	1.5A
2. Voltage Rating	125v
3. Contact Resistance	30milliohm Max
4. Withstand Voltage	1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance	500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force	2.2KG.F MAX.
7. Retention Strength	7.7KG.F MIN Between Jack And Plug
8. Operating Life	750 Cycles MIN.
9. Operation Temperature	﹣40℃ to +85℃
10. Storage Temperature	﹣40℃ to +85℃
11. Housing Material	PBT/PA66/PA46
12. Contact Material	DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area Plating	Gold/3u"/6u"/15u"/30u"
14. LED Option	Yellow/Green LEDs

Product application:

Free for network and communication device sas HUB, PC card, switch, router, PC board, SDH, PDH, IP phone, x DSL modem, call center solution, call set-top box, VOIP gateway, setup protocol gateway, fast Ethernet switch ...

Competitive prices and services:

More competitive prices than pulsed Tico halos and aphorol
Delivery time: 2-3 weeks after order
Samples provided free of charge
New designs to meet customer requirements
DHL UPS DEDEX or TNT reduces shipping costs by 90%

Why choose us:

Equipment and manufacturing ability for mould
Competitive price , and in time delivery well-selling in both domestic and foreign markets
Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
Specializes in the development , design , production and sale of communication network connectors .

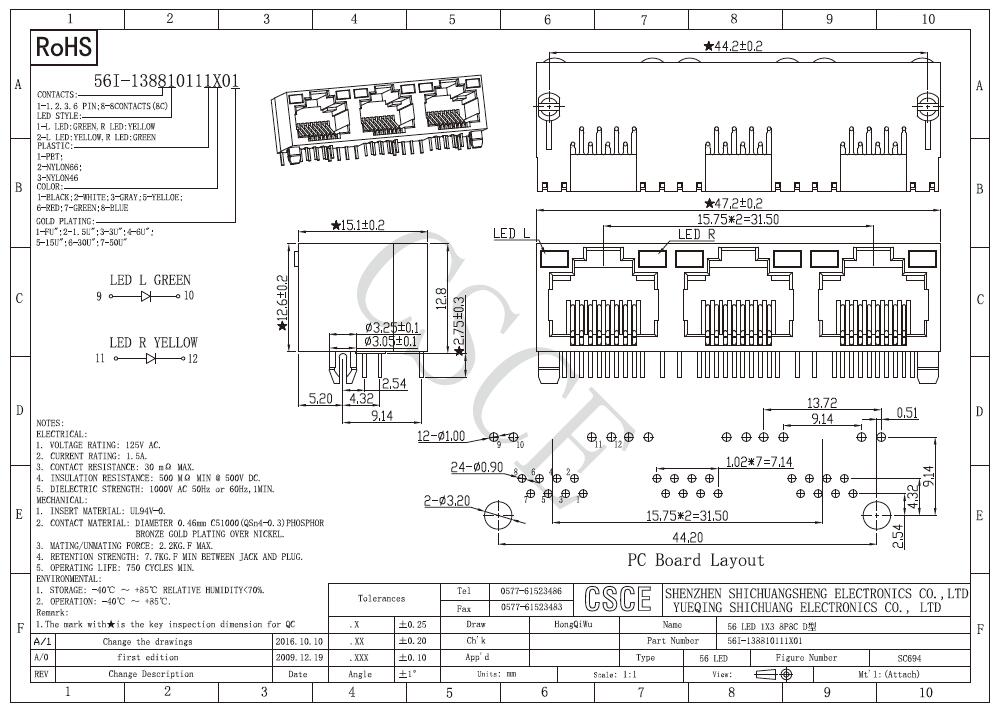

Product Drawing:
