| RJ45 Modular Jack 6 Port High Wearing Gigabit Ethernet Jack Insert Material UL94V-0 |
Product Details:
| Specification: | RJ45 Modular Jack | Cross Part NO: | 59A-16880002211X01S |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
About Shipping:
1. We ship items by DHL/FEDEX/UPS/EMS/TNT,ETC.,you can choose by yourself.
2. We hope goods arrive on time,but since this is an international delivery,shipping time will be highly depended on the courier company and local customs/duties.Thank you for your kindly understanding.
Pre-sale service:
1. We try to do best communicate with every customer about all the questions and promptly
2. We provide pre-sale service in various forms, such as we can provide options for customer choose. So that customers can a reasonable plan with less cost.
In-sale service:
1. We do double check before the products sent out
2. We do choose the safe shipping
3. We do make sure you can get the products on time
After service:
1. We do follow up after you get the products
2. We will answer customer questions in time. If need, we can provide free guidance if customer need new requirements.
3. If we have new products, we can recommend you in advance, when you place the second order, we will happy to give you a discount.
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
Product Description:
| Retention Strength | 7.7KG.F MIN Between Jack And Plug |
| Operating Life | 750 Cycles MIN. |
| Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
| Storage Temperature | ﹣40℃ to +85℃ |
| Insert Material | UL94V-0 |
| Mating/Unmating Force | 2.2KG.F MAX. |
| Operation Temperature | ﹣40℃ to +85℃ |
| Current Rating | 1.5A |
| Contact Resistance | 30milliohm Max |
| Insulation Resistance | 500 MΩ MIN @ 500V DC. |
| Contact Material | DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze |
| Voltage Rating | 125v AC |
Features:
1. All materials comply with ROHS
2. High-wearing feature
5. OEM & ODM are both available.
6. Quality Assurance, 36 months warranty.
7. Riveting machine was invented by us.
8. We do lots of research and development in these area, if you meet any difficulties, feel free to contact us.
Our advantage:
1. Competitive price advantage helps to save your purchase cost and your precious time.
We wholesale and distribute new,original &famous brand Electronic Components all over the world.
2. Own the international advanced testing equipment of electronic components and scientific storage system to ensure the quality stability.
3. Excellent elite team, more than 14 years seniority, and a good understanding of international market trends.

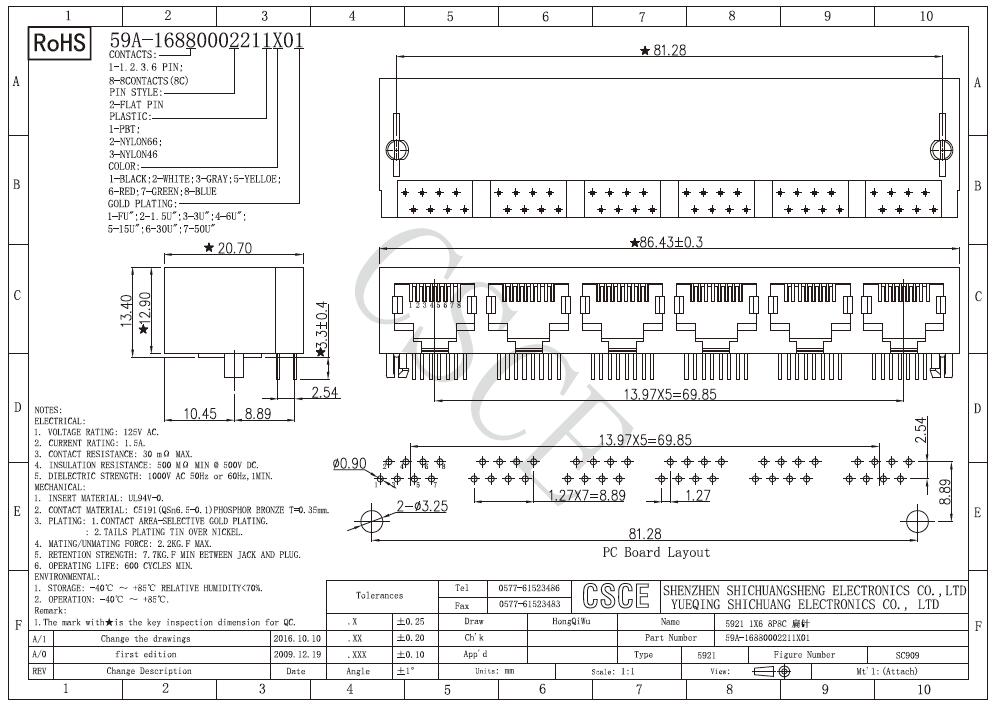

Product Darwing:
Product Tags:
|
|
RJ45 Modular Jack 6 Port High Wearing Gigabit Ethernet Jack Insert Material UL94V-0 Images
|
